Product Features

• Gantry structure + hydrostatic table for high rigidity, low vibration, and ultra-precision grinding
• HSK high-speed spindle up to 100,000 rpm for versatile ID/OD grinding
• ATC (Automatic Tool Change) system completes both ID and OD grinding in one setup

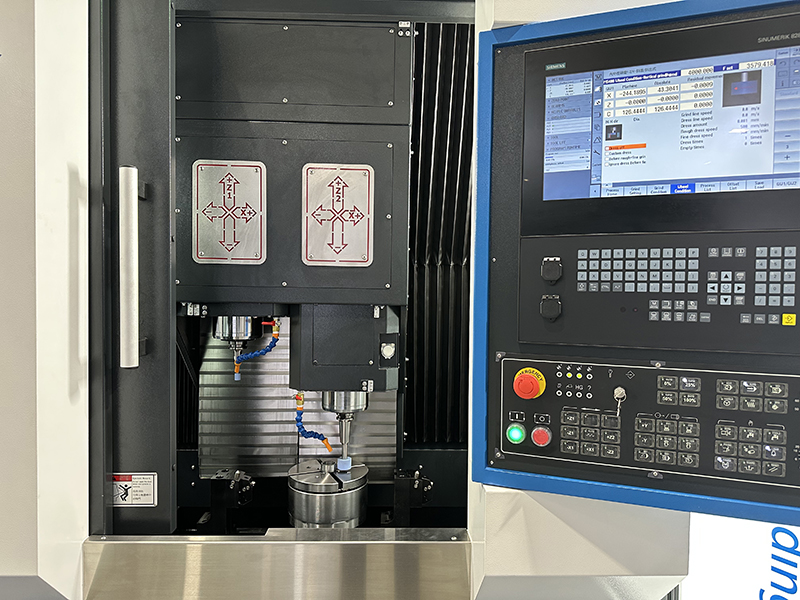

• Intelligent HMI dialogue interface for quick program setup, ensuring efficiency and precision
• Hydrostatic rotary table for smooth low-speed rotation, reducing thermal deformation
• Optional dual-spindle configuration for simultaneous ID/OD grinding to boost productivity


Machine Structure

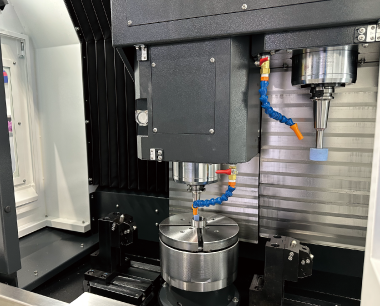

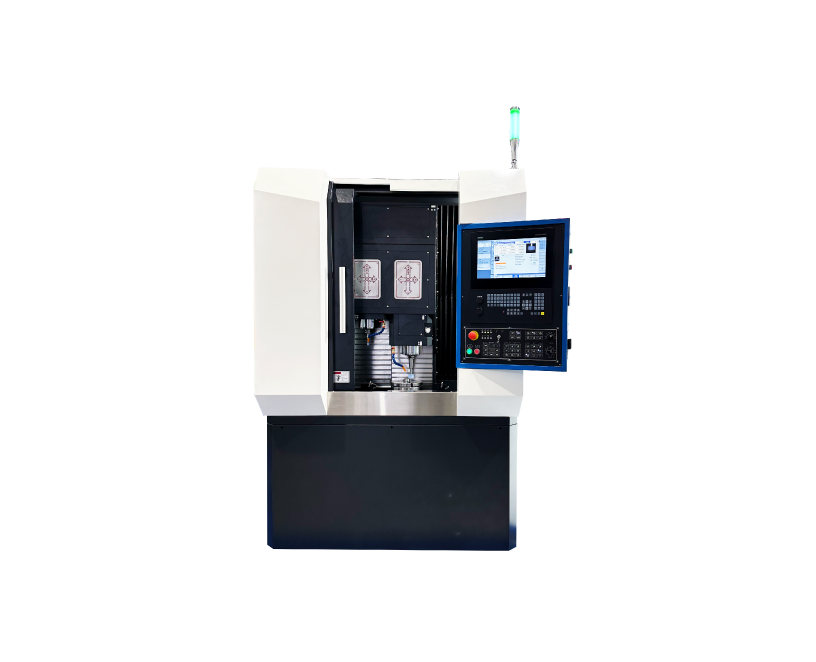

Model DN-200 features a Single Spindle with ATC architecture. The base uses a high-rigidity cast iron gantry structure with linear guideways on X/Y axes and ball screw drive on the Z axis. The hydrostatic table ensures rotation smoothness and thermal stability for precision OD and ID grinding.
