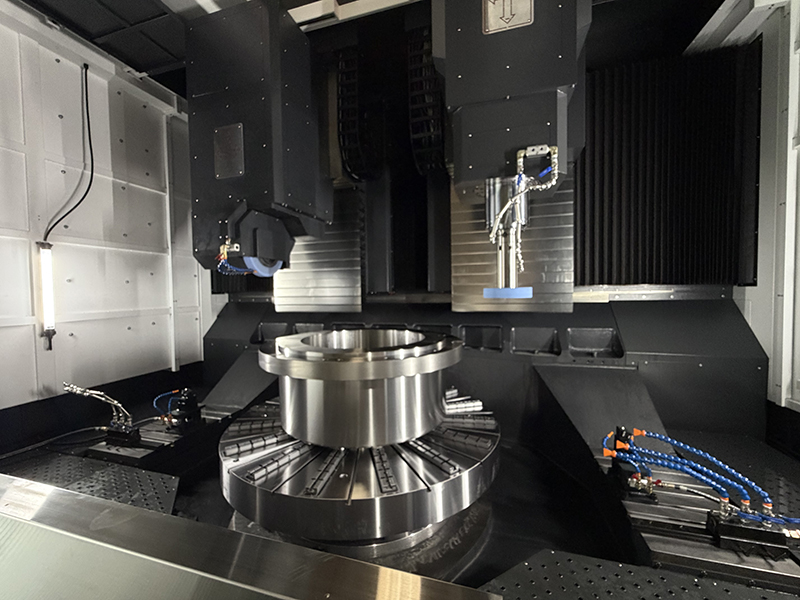

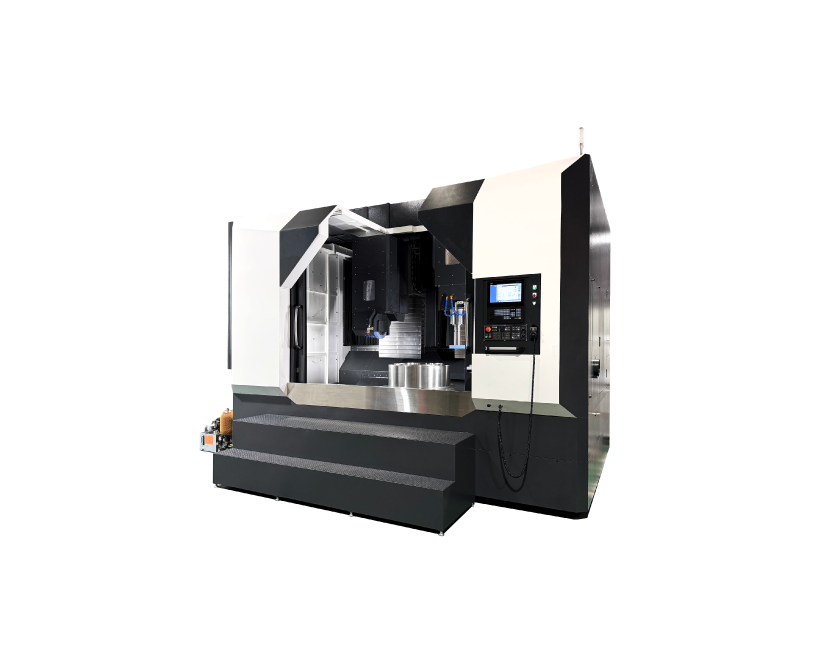

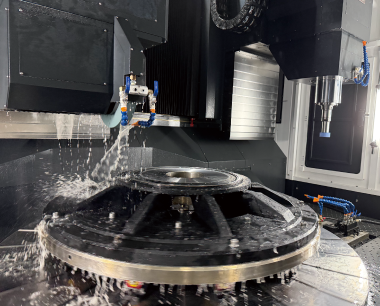

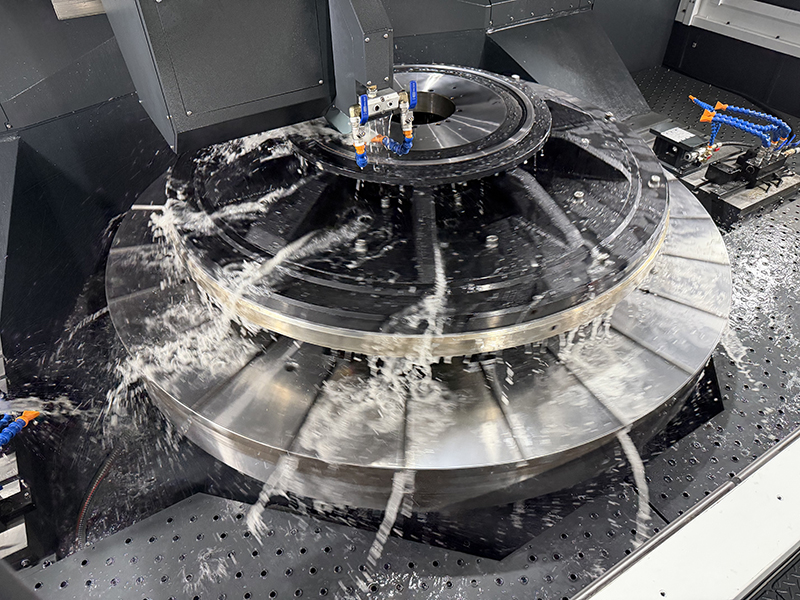

Vertical Multi-tasking Grinding Machine DN-1600
Vertical Multi-tasking Grinding Machine DN-1600
SPECIFICATIONS
DN-1600 Series
| Series | DN-1600 | Standard Accessories |
| Worktable diameter | ⌀1600mm | Working lamp |
| Max swing of workplece | ⌀1780mm | Paper filter |
| ATC series opening height*(Option) | 950mm(1250mm) | Magnetic separator |
| Dual spindle serles opening height*(Option) | 950mm(1250mm) | Wheel adaptors x 3 sets |
| Grinding length for Inner/outer diameter | 400mm(Customizable) | Dressing seat with diamond pen x 1 set |
| Max load of table | 5,000kg | Oil chiller for spindle |
| Worktable speed | 80rpm | Oil chiller for rotary table |
| Worktable power | 7.1KW | Tool box with tools |
| ATC series spindle taper/speed | HSK100A/10,000rpm | Optional Accessories |
| ATC series spindle drive/power | Built-in 25kw | Mineral cast construction |
| ATC series tool maganzine capacity | 6T | Touch probe |
| Dual spindle series S1 spindle taper/speed | M36/8,000rpm | Online measuring system |
| Dual spindle series S1 spindle drive/power | Direct-drive/15 kw | Roller dressing attachment |
| Dual spindle series S2 spindle taper/speed | M36/20,000rpm | Diamond dressing roller |
| Dual spindle series S2 spindle drive/power | Built-in 18kw | B axis swivel structure |
| Vertical spindle max grinding wheel diameter | ⌀305mm | Anti-collision system |
| Horizontal spindle adaptor/speed | Flange/3,600 rpm | Spindle monitoring system |
| Horizontal spindle drive/power | Belt/7.5kw | Permanent magnetic chuck |
| Horizontal spindle max grinding wheel diameter | ⌀405mm | Auto door |
| Single spindle series X axis travel | 2800mm | Hydraulic 3-jaw chuck |
| Dual spindle series X1/X2 travel | 1400mm/1400mm | Manual 3-jaw chuck |
| Single spindle series Z axis travel | 900mm(1100mm) | Customized fixture |
| Dual spindle series Z axis travel | 900mm(1100mm) | DD rotary table |
| Standard linear scale axis for single spindle series | X/Z axes | Linear motor |
| Standard linear scale axis for dual spindles series | X1/X2 axis or X1/Z2 axis | Oil chiller for coollant tank |
| ATC series machine weight | 25T | Customized spindle |
| Dual spindle series machine weight | 26T | Semi-auto wheel balancing system |
| ATC series floor space | 6M x 4.5M | Gap control |
| Dual spindle series floor space | 5.5M x 4.5M | Air conditioner for electrical cabinet |
| Transformer | ||
| Voltage stablizier | ||
| Customized specification upon request | ||
| In line with continuous product development, specifications are subject to change without prior notice. | ||
